55" 4K UHD 3D MONITOR | B. Braun- Home

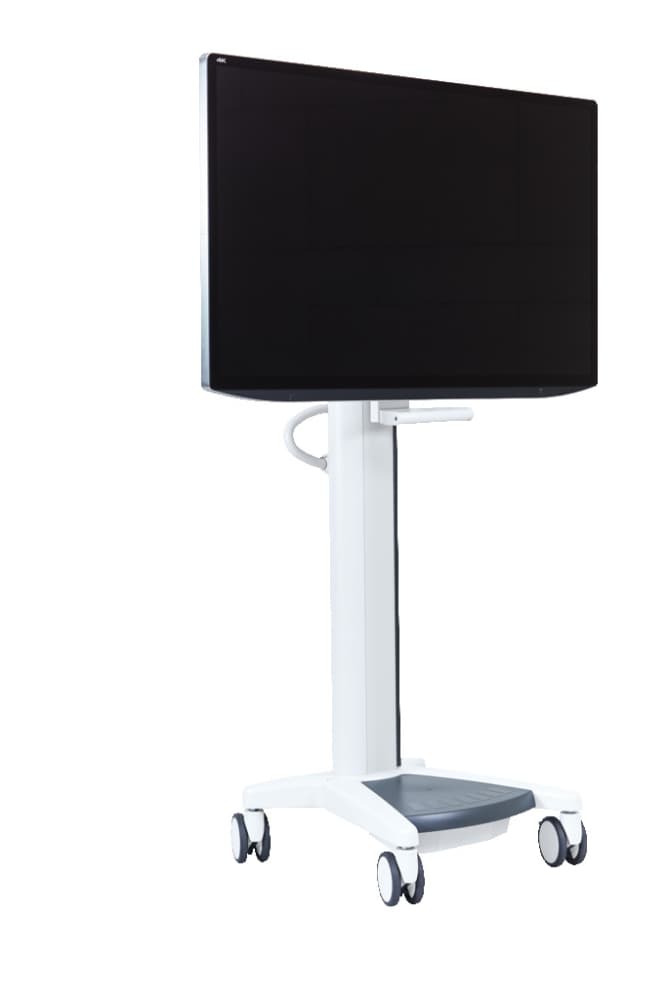

55" 4K UHD 3D MONITOR
PV01555" 4K UHD 3D MONITOR
- Product Search Type
- LCD Flat Screen
- Aesculap Product Groups
- Neurosurgery
- Product family
- Equipment
- Diagonal size (inch)
- 55"
- Power supply
- 100-240 V AC, 50/60Hz
- Maximum power consumption
- 290.0 W
- Width (mm)
- 1264.600 mm
- Height
- 771.500 mm
- Depth (mm)
- 88.500 mm
- Weight
- 35.20 kg
- Viewable diagonal (Inch)
- 55"
- Brightness (cd/m²)
- 520
- Resolution
- 3840 x 2160 pixel
- Contrast ratio
- 1400:1
- Video signal inputs
- BNC (8x5) (3G/HD/SD-SDI), HDMI, DVI (DVI-D)
- Video signal output
- DVI (DVI-D), BNC (SDI)
- to be used with (code)
- PV016
- VESA-standard mounting system
- 200 mm
- Product contains Latex
- No
- Sterility
- non-sterile
- Disposable / Reusable
- reusable
