VASOFIX IV G16X50MM GREY | B. Braun- Home
VASOFIX IV G16X50MM GREY
4268172BVASOFIX IV G16X50MM GREY
- Brand name
- Vasofix®
- Product name (HC)

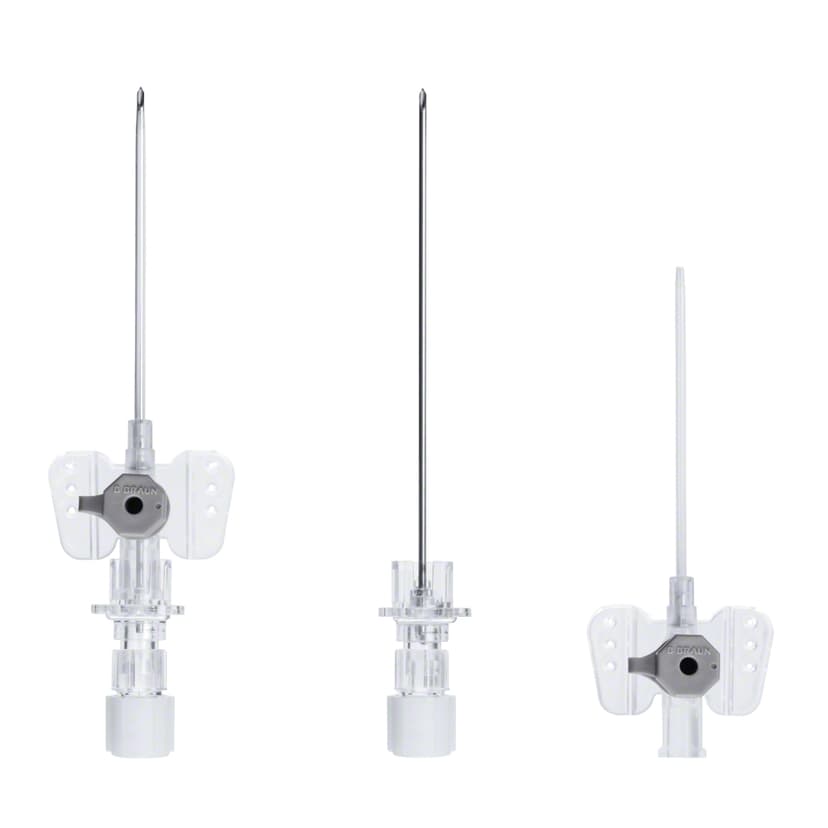

- Vasofix® Braunüle®
- Product type
- IV catheter
- Wing
- Wing
- Injection port
- Yes
- Flow rate
- 196.00 ml/min
- Connection
- Luer-Lock/female
- Catheter-Gauge
- 16
- Outer-ø catheter (metr.)
- 1.70 mm
- Inner-ø catheter (metr.)
- 1.30 mm
- Residual volume
- 0.189 ml
- Color
- grey
- Length of catheter
- 50.0 mm
- Length of catheter (inch)
- 2"
- Material of catheter
- FEP
- Safety clip
- No
- X-ray contrastable marking
- X-ray contrast thread
- Type of packaging
- Blister
- Product contains PVC
- No
- Product contains Latex
- No
- Product contains DEHP
- No
- Product contains Nickel
- Yes
- Remark critical attributes
- Needle cont. Nickel
- Disposable / Reusable
- disposable
- Sterility
- sterile
- Type of Sterilization
- EO
